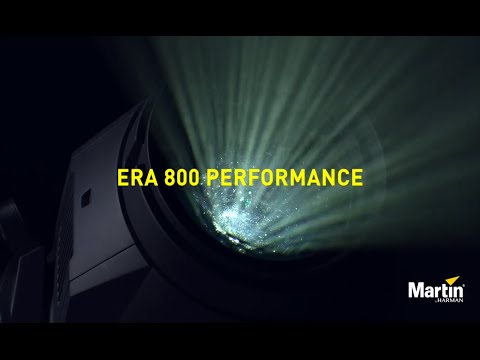

ERA 800 Performance

800W LED based profile with framing and CMY colour mixing

SRP £9,995.00 + VAT

Designed to fulfill the demand for an ultra-bright, compact, tour-worthy moving head, the Martin ERA 800 Performancecombines a feature-loaded and rugged, yet cost-efficient profile for entertainment and rental applications. It features a highly efficient, super-bright 800W white LED engine that produces a bright, sharp 6,500K gobo projection with a flat field.


Additional key benefits include 1:8 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, variable color temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft and heavy frost filters.The ERA 800 Performance includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage. When fully focused, gobos can be nicely framed with a soft edge, and each of the four framing blades can cross the entire beam independently for a full blackout.


The entire system can rotate 120 degrees, allowing designers to direct light exactly where they want it to go and achieve unique movement effects not otherwise possible. Perfect for big, stadium-sized stage and live productions, the Martin ERA 800 Performance is ideal for a long list of scenarios, requiring an extremely bright, yet truly versatile LED profile that offers near limitless design and usage potential.


FULL FRAMING SYSTEM
The full curtain framing system allows each of the four framing blades to cross the entire beam independently for full blackout. In addition, the entire framing module can rotate 120 degrees, allowing for precise and accurate image projection for the desired stage area. When fully focused, gobos can be framed with a soft edge, enabling designers a high degree of flexibility in the lighting design.


800 WATT LED LIGHT SOURCE
With an efficient 800 watt light source, the ERA 800 Performance delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.


GREAT COLOR PALETTE
Precise color temperature control with variable color temperature correction (CTO). Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries. The color wheel produces nice color splits, fast color bumps & extends overall color gamut and brightness.


1:8 ZOOM RANGE
With 7 to 56 degrees of zoom, the ERA 800 Performance works great even on larger trim heights. Zooming is fast and accurate and maintains a high output throughout the range.


COMPACT AND DESIGNED FOR THE ROAD
The ERA 800 Performance is a very compact and low weight for its class making it easy to handle and rig. The modular design makes accessing & replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

  • Bright 800 watt / 6,500K LED light source
  • 34,000 lumen output
  • Crisp optics with flat field
  • Fat beam look with 160 mm front lens
  • 1:8 Fast zoom
  • CMY color mixing - Vibrant color mixing with a superior palette of colours
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • 6-slot color wheel –for added color choice and split color effects
  • Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
  • 6 rotating/indexing gobos – All renowned Martin glass gobos
  • 7 static gobos for great morphing effects
  • Animation wheel with continuous bi-directional rotation
  • Iris – Fast and tight iris
  • Two prisms - 4-facet and linear – rotation and index control for dynamic effects
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
  • Heavy frost – for wash light effects
  • Compact and low weight design
DYNAMIC EFFECTS
Electronic 'shutter' effectStrobe effect, pulse effects, instant open and blackout
Electronic dimming0 - 100%, four dimming curve options
Colour mixingCMY, independently variable 0-100%
Colour temperature controlVariable 6500 - 2700 K
Colour wheel6 colour filters plus open
Rotating gobo wheel6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel7 gobos plus open, wheel indexing, rotation and shake
Gobo animationAnimation wheel, indexing, continuous rotation with variable speed and direction
Iris0-100%
ZoomMotorised
FocusMotorised
FramingRotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position
Prism2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
FrostSoft frost effect and heavy frost effect
Pan540°, coarse & fine control and speed
Tilt260°, coarse & fine control and speed
CONTROL AND PROGRAMMING
Control optionsDMX
16-bit controlDimming, pan and tilt
Setting and addressingControl panel with backlit LCD display
DMX channels42
DMX complianceUSITT DMX512/1990
RDM complianceANSI/ESTA E1.20
TransceiverOpto-isolated RS-485
OPTICS AND SOURCE
Front Lens Diameter160 mm
Zoom range7° - 56° (1:8)
Light source800W LED engine
Minimum LED lifetime20000 hours (to >70% luminous output)*
PHOTOMETRIC DATA
Light engine luminous output70000 lumens
Fixture luminous output34000 lumens
CRI (Color Rendering Index)>70
CCT6500 Kelvin (+/- 350K)
LED refresh rate3600 Hz
CONSTRUCTION
HousingHigh-impact flame-retardant thermoplastic
ColourBlack
Protection ratingIP 20
GOBOS
Gobo diameter30.0 mm +0/- 0.2 mm (in. +0/- 0.008 in.)
Maximum image diameter25.0 mm (0.98 in.)
Gobo thickness, maximum1.1 mm (0.04 in.)
INSTALLATION
Installation mounting pointsTwo quarter-turn brackets for rigging clamps
OrientationAny
CONNECTIONS
AC power input, thruNeutrik powerCON TRUE1
DMX data in/out5-pin locking XLR
ELECTRICAL
AC power100-240V nominal, 50/60 Hz
Power supply unitAuto-ranging electronic switch mode
Steady Power Consumption94 W, all effects static, zero light output
Half-cycle RMS inrush current52.3 A (at 230 V, 50 Hz)
TYPICAL POWER AND CURRENT
120V, 60Hz10.8A, 1270W, PF 0.99
230V, 50Hz5.5A, 1240W, PF 0.97
THERMAL
CoolingForced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.)40° C
Minimum ambient temperature (Ta min)0° C
Maximum surface temperature, steady state75° C (167° F) at 40° C ambient
Total heat dissipation4340 BTU/hr. (calculated, +/- 10%)
APPROVAL
EU safetyEN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMCEN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
US safetyUL 1573
US EMC.FCC Part 15 Class B
Canadian safetyCSA C22.2 No. 166
Canadian EMCICES-003 Class B, ICES-005 Class B
Australia/NZRCM
Global CB Certification/IECEEIEC 60598-2-17 (IEC 60598-1)
PHYSICAL
Length431 mm (17in.)
Width290 mm (11.4in.)
Height01 mm (31.5in)
Weight39.5 kg (87.1lbs)
