ERA 400 Performance WRM

300W warm LED based profile with framing and CMY colour mixing

SRP £4,800.00 + VAT

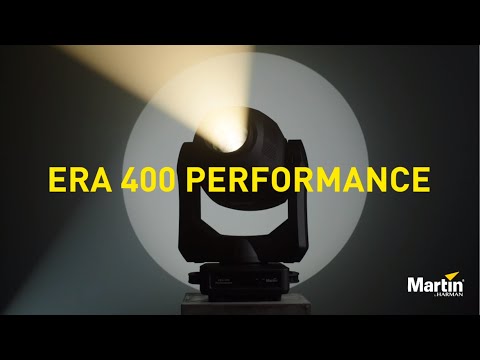

The Martin ERA 400 Performance is a very compact framing moving head with a 300W white LED engine that produces a sharp gobo projection with a flat field and a complete feature set. The new moving head is available in two variants - CLD which features a 6500K LED with 10,000 lumens out of the fixture and WRM which features a 3200K LED with 5,000 lumens out of the fixture.


The Martin ERA 400 Performance features CMY color mixing, 1:3 zoom, electronic dimming and strobe, color wheel, two layers of gobos, iris, rotating prism and full curtain framing system with gobo focus-ability – all at a competitive price point.   Building on the Martin MAC Encore philosophy these temperature variant models offer users a choice of color pallet, CRI and color temperature to suit their application.


These fixtures are ideal for small and mid-sized concert and touring, live TV productions, corporate shows, cruise line and houses of worship, as well as small- to mid-sized theatres (WRM) where tungsten emulation is desired.


FULL FRAMING SYSTEM
The full curtain framing system allows each of the four framing blades to cross the entire beam independently for full blackout. In addition, the entire framing module can rotate ± 45 degrees, allowing for precise and accurate image projection for the desired stage area. When fully focused, gobos can be framed with a soft edge, enabling designers a high degree of flexibility in the lighting design.

300 WATT LED LIGHT SOURCE
With an efficient 300 watt light source, the ERA400 delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

CMY COLOUR MIXING
It offers subtle pastels to vibrant colours, as well as fast transitions and smooth fades. The colour wheel produces nice colour splits, fast colour bumps & extends overall colour gamut and brightness. It also features a CTO filter to obtain a 3000K tungsten colour temperature.

1:3 ZOOM RANGE
With 10 to 30 degrees of zoom, the ­ERA400 Performance works great on various trim heights and the 30-degree wide-angle delivers enough spread for great coverage on smaller stages. Zooming is fast and accurate and maintains a high output throughout the range.

COMPACT AND DESIGNED FOR THE ROAD
The ­ERA400 is a very compact and low weight for its class making it easy to handle and rig. The modular design makes accessing & replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

  • Bright 300 watt / 3,200K LED light source
  • 6,000 lumen output
  • Smooth electronic dimming and fast strobe effects
  • Crisp optics with flat field
  • 1:3 Fast zoom
  • CMY colour mixing - Vibrant colour mixing with a superior palette of colours matching the MAC range
  • 9-slot colour wheel –for added colour choice and split colour effects
  • Full Curtain Framing blades with +/- 45° rotation of entire system for flexible shape generation
  • 7 rotating/indexing gobos – All renowned Martin glass gobos
  • 9 static gobos for great morphing effects
  • Iris – Fast and tight iris
  • 3-facet prism – Real beam separation with rotation and index control for dynamic effects
  • Compact and low weight design
DYNAMIC EFFECTS
Electronic 'shutter' effectStrobe effect, pulse effects, instant open and blackout
Electronic dimming0 - 100%, four dimming curve options
Colour mixingCMY, independently variable 0-100%
Colour wheel9 colour filters plus open
Rotating gobo wheel7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel9 gobos plus open, wheel indexing, rotation and shake
Iris 0-100%
ZoomMotorized
FocusMotorized
FramingRotatable framing module, +/- 45°, with 4 individually controllable full framing blades with variable angle and position.
PrismRotating/indexing three-facet prism
Pan540°, coarse & fine control and speed
Tilt260°, coarse & fine control and speed
CONTROL AND PROGRAMMING
Control optionsDMX
16-bit controlDimming, pan and tilt
Setting and addressingControl panel with backlit LCD display
DMX channels31
DMX complianceUSITT DMX512/1990
RDM complianceANSI/ESTA E1.20
TransceiverOpto-isolated RS-485
OPTICS AND SOURCE
Front Lens Diameter110 mm
Zoom range10° - 30°
Light source300W LED engine
Minimum LED lifetime20000 hours (to >70% luminous output) ** Manufacturer´s figure obtained under manufacturer´s test conditions
PHOTOMETRIC DATA
Light engine luminous output15500 lumens
Fixture luminous output6000 lumens
CRI (Color Rendering Index)>91
CCT3200 Kelvin
LED refresh rate1200 Hz
CONSTRUCTION
HousingHigh-impact flame-retardant thermoplastic
ColourBlack
Protection ratingIP 20
GOBOS
Gobo diameter26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
Maximum image diameter19.0 mm (0.75 in.)
Gobo thickness, maximum1.1mm borosilicate glass
INSTALLATION
Installation mounting pointsTwo quarter-turn brackets for rigging clamps
OrientationAny
CONNECTIONS
AC power input, thruNeutrik powerCON TRUE1
DMX data in/out3-pin & 5-pin locking XLR
ELECTRICAL
AC power 100-240V nominal, 50/60 Hz
Power supply unitAuto-ranging electronic switch mode
TYPICAL POWER AND CURRENT
120V, 60Hz3.8A, 455W, PF 0.992
230V, 50Hz1.96A, 442W, PF 0.968
Steady Power Consumption44 W, all effects static, zero light output
Half-cycle RMS inrush current6A (at 230 V, 50 Hz). Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
THERMAL
CoolingForced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.)40° C
Minimum ambient temperature (Ta min)0° C
Maximum surface temperature70° C (158° F), steady state at 40° C ambient
Total heat dissipation1550 BTU/hr. (calculated, +/- 10%)
APPROVAL
EU safetyEN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMCEN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
US safetyUL 1573
US EMCFCC Part 15 Class B
Canadian safetyCSA C22.2 No. 166
Canadian EMCICES-003 Class B, ICES-005 Class B
Australia/NZRCM
Global CB Certification/IECEEEC 60598-2-17 (IEC 60598-1)
PHYSICAL
Length379mm
Width237mm
Height632mm
Weight22.5kg
