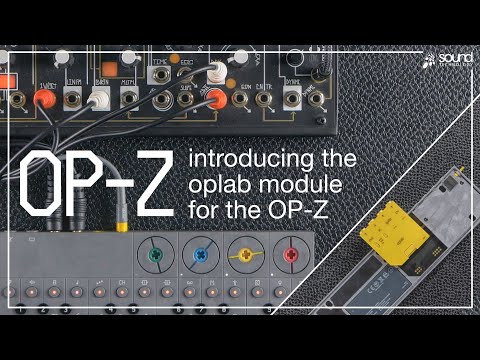

oplab module

MIDI, CV, PO sync hardware expansion for OP-Z

The new oplab module is the magic link between OP-Z and the rest of the world. Imagine having the power and flexibility of the OP-Z sequencer available to any other music equipment. Once the oplab module is mounted in the back of your OP-Z, you can use it to connect to any equipment using standard CV and gate, such as any modular system. It features three cv outs and one gate out, all programmable and playable from OP-Z. Have your wall of modules sequenced from the palm of your hands.

Use the PO sync out to unleash the power of your regular Pocket Operators and have them play in sync with the rest of your setup.

Even connect standard MIDI devices, using MIDI over 3.5 mm jack or the included MIDI over din adapter cable. oplab features both MIDI in and out ports as well as trig in and out for other synthesizers and sequencers.

  • CV Connectivity
  • V/oct Out (0V to +5V)
  • Gate Out (0V to +5V)
  • CV2 Out (-5V to + 5V)
  • CV3 Out (-5V to +5V)
  • Trig In (-10V to +10V)
  • Trig Out (0V to +5V)
  • MIDI Connectivity
  • MIDI In (-10V to +10V)
  • MIDI Out (0V to +5V)
  • Pocket Operator Connectivity
  • PO Sync Out (0V to +5V)
